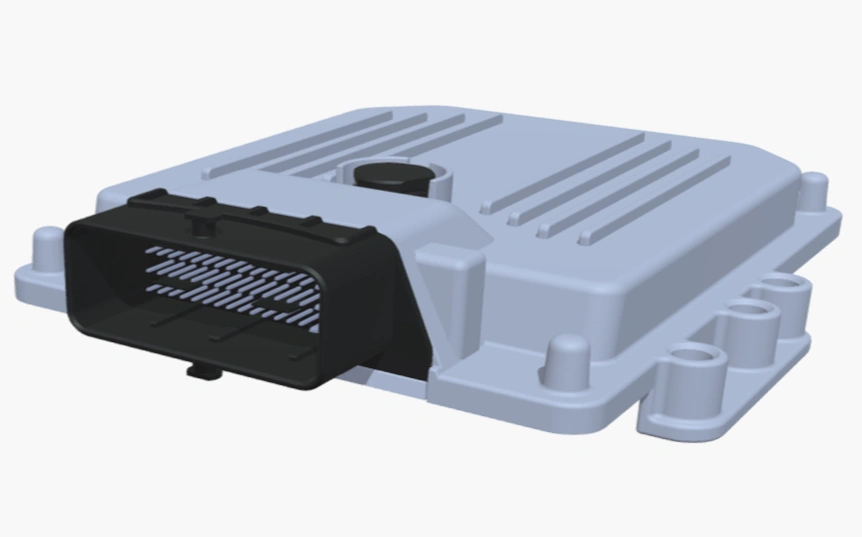

Vehicle Control Unit (VCU)
Overview
2-wheelers · 3-wheelers · Tractor · LCVs
Key Highlights
- •
Automotive-Grade Processing: NXP S32K344 MCU @ 160 MHz with 4 MB Flash Memory and 512 KB SRAM.
- •
Functional Safety & Cyber Security: Designed for ISO 26262 up to ASIL D with Hardware Security Engine (HSE - ISO 21434) supporting AES-128/192/256, RSA, ECC, and Secure Boot.
- •
Ruggedized Enclosure: Die-cast ADC12 Aluminum housing with IP67 / IP69 protection ratings.
- •
Rich Bus Connectivity: 6 CAN channels (CAN FD up to 5 Mbps, including Wake-on-CAN and Isolated CAN options), 1 LIN bus, 2-Wire Ethernet, and USB 2.0.
- •
Smart EV Charging Controls: Integrated QCA 7006AQ PLC supporting ISO 15118, DIN 70121, IEC 61851, and SAE J1772 for seamless AC/DC fast charging.
- •
Optional High-Performance Telematics (MPU): Quad-Core RK3566 Linux Compute Module with Wi-Fi 5, BLE 5.0, LTE-M/GNSS, and 8GB eMMC storage.
- •
Over-the-Air (OTA) Ready: Update firmware seamlessly via integrated/external telematics using OptM’s CortX-Fleet platform.
Technical Specification
Safety Rating
ISO 26262 ASIL D Compliant
Operating Voltage
5 V – 36 V DC
CAN Interfaces
6x Channels (CAN FD up to 5 Mbps, 1x Isolated)
LIN Interface
1x Channel (LIN 2.x with Wake-on-LIN)
Use Cases
Vehicle & Powertrain Control
Body & Domain Control Node
Smart EV Fast Charging (PLC)
CortX-Fleet Connected Telematics
Segments Served
Our solutions cater to a diverse range of vehicle platforms and applications.
2 Wheeler
3 Wheeler
e-Tractor
LCVs
Why Choose OptM’s Vehicle Control Unit?
Rugged Reliability
Automotive-grade protection inside an IP67-rated die-cast aluminum enclosure with full UDS diagnostic support.
Smart Charging (PLC)
Integrated Qualcomm QCA7006AQ PLC supporting ISO 15118 and DIN 70121 fast charging protocols.
CortX-Fleet Telematics
Optional RK3566 MPU running Debian Linux/Android with real-time tracking, geo-fencing, and OTA.
ASIL D Safety & Security
Designed for ISO 26262 ASIL D safety and ISO 21434 cyber security standards with hardware HSE.
Make in India
Make in India
At OptM, we are committed to strengthening India’s manufacturing ecosystem through cutting-edge technology, indigenous development, and world-class engineering solutions. We aim to drive national progress in Automotive, Defense and Broadcasting sector.
ARAI certified
Automotive Grade
Global Standards
